Find the right steering column U joint to fit your project. This guide compares top universal joints by size, material, and compatibility to help you pick the best choice for your vehicle or DIY setup. The highlighted options cater to different needs: durable forged steel for heavy use, compact 3/4″ DD joints for tight spaces, and long shafts for extended runs. This overview targets hobbyists, off-road builders, and professionals seeking dependable performance.
| Product | Fit Type | Key Benefit | Best For |
|---|---|---|---|
| RABROPAR 3/4″ DD X 3/4″ DD Steering U Joint | 3/4″ DD to 3/4″ DD | Balanced length and angle | General automotive projects |
| RABROPAR 3/4 DD X 3/4 DD Steering Shaft U Joint | 3/4″ DD to 3/4″ DD | Forged 40Cr alloy steel | Durable, high-stress use |
| GLOCRORET 3/4″-36 Spline X 3/4″ DD | 3/4″-36 spline to 3/4″ DD | Premium bearings and coating | Precise alignment and corrosion resistance |
| RABROPAR 3/4″ Round x 3/4″ Round | 3/4″ Round to 3/4″ Round | Compact, all-round design | Space-constrained setups |
| 3/4-30 Spline X 3/4″ DD | 3/4-30 spline to 3/4″ DD | Lightweight and compact | Small shafts with spline compatibility |
RABROPAR 3/4″ DD X 3/4″ DD Steering U Joint
The product is a 3/4″ DD to 3/4″ DD single steering shaft universal joint. It has a total length of 3-1/4″ and an outside diameter of 1-5/8″. The maximum working angle is 35°, and the maximum operating speed is 4000 rpm. This makes it suitable for standard automotive projects and light-duty off-road builds where space is moderate and angles are moderate. Best for builders needing a balanced, mid-length joint that fits common 3/4″ drives. A potential limitation is the fixed angle range; avoid if your setup requires larger swing angles beyond 35°.
RABROPAR 3/4 DD X 3/4 DD Steering Shaft U Joint Coupling
This forged 40Cr alloy steel universal joint features a chrome-plated, durable body. It uses a 3-1/4″ overall length and a 1-5/8″ outside diameter with a 35° maximum working angle and 4000 rpm maximum. It is well-suited for more demanding conditions where durability matters. Best for users needing a tougher construction with better surface finish. Limitation: chrome plating may require care to prevent corrosion when exposed to harsh elements.
GLOCRORET 3/4″-36 Spline X 3/4″ DD
Offering a 3/4″-36 spline to 3/4″ DD interface, this unit features a total length of 3-1/4″ and a black coating. It supports up to 4000 rpm and a 35° maximum angle. Made with 40Cr alloy steel and premium needle roller bearings, it emphasizes smooth operation and corrosion resistance. Best for precise alignment needs and higher-quality materials. Limitation: spline count requires matching compatible shaft dimensions in your assembly.
RABROPAR 3/4″ Round x 3/4″ Round U Joint
This 3/4″ round to 3/4″ round joint is a simple, robust steel design with no fixed screws at the ends. It is recommended to fix ends by welding or drilling, making it a flexible choice in custom builds. With a 1.625″ outside diameter and a total length of 3.75″, it supports up to 35° and 4000 rpm. Best for projects requiring welding-friendly joints. Limitation: non-fixed-end design requires additional assembly steps.

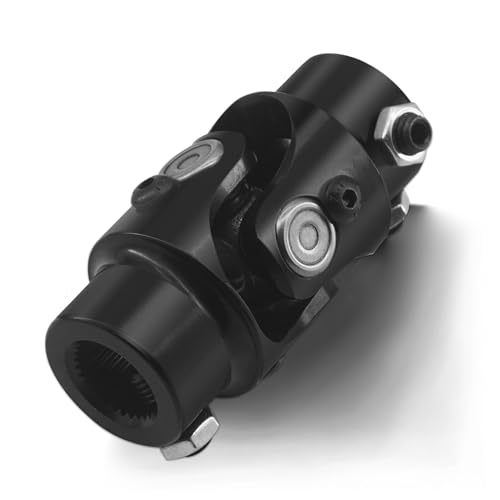

3/4-30 Spline X 3/4″ DD Black Steering U Joint
This unit combines a 3/4-30 spline with a 3/4″ DD interface in a compact 83mm overall length. It supports up to 4000 rpm. Best for smaller shafts where spline compatibility is essential, and how this fits in a compact steering column. A possible drawback is limited length for longer runs.
36″ Length 3/4″ DD Steering Shaft U-Joint
This long shaft supports 3/4″ DD joints and is designed for longer runs. The 36″ length makes it a better fit for extended steering setups or custom frames. Best for projects where distance between steering and joint needs exceeds standard lengths. Limitation: a longer shaft can add torsional stiffness and may require alignment considerations during installation.
Single Steering Shaft Universal U Joint 3/4″ DD x 1″ DD 83mm
This unit uses 3/4″ DD to 1″ DD with a total length of 83mm (3-1/4″). It is black and made of 40Cr solid steel. Best for applications needing a slightly larger end diameter while retaining a compact overall length. Consider choosing this if your system requires a larger fixed end; otherwise, the 3/4″ DD to 3/4″ DD options may suffice. Caution: larger end diameter may affect fit in tight enclosures.
Buying Guide: Key Purchase Considerations
- Joint size and compatibility: Match the shaft diameter and spline count to your existing steering components.
- Length and angle: Consider total length and maximum working angle (commonly 35°) to ensure full articulation without binding.
- Material and finish: Forged alloy steel offers higher strength; coatings (chrome, black) affect corrosion resistance and durability.
- End design: Round ends vs. fixed ends with welding or drilling—choose based on installation flexibility and vehicle constraints.
- Load and speed: Ensure the unit supports the expected rpm range and load in your project environment.
FAQ
- What size steering U joint is most common? – Many projects use 3/4″ diameter joints, balancing strength and fit for standard steering shafts.
- Is a 35° working angle typical? – Yes, most off-the-shelf U joints offer around 35° to handle common steering sweeps.
- Do I need a specific material? – For general use, forged steel (like 40Cr) provides good strength; chrome plating adds corrosion resistance.
- When should I use a spline-based joint? – Splines are helpful when you need precise torque transfer and alignment with compatible shafts.
- Can I weld a joint with no fixed ends? – Yes, but ensure proper welding procedures and securing methods to maintain alignment and safety.
- What is the advantage of a longer shaft? – Longer shafts reduce the need for rigid mounts and can accommodate larger vehicle frames or custom builds.
